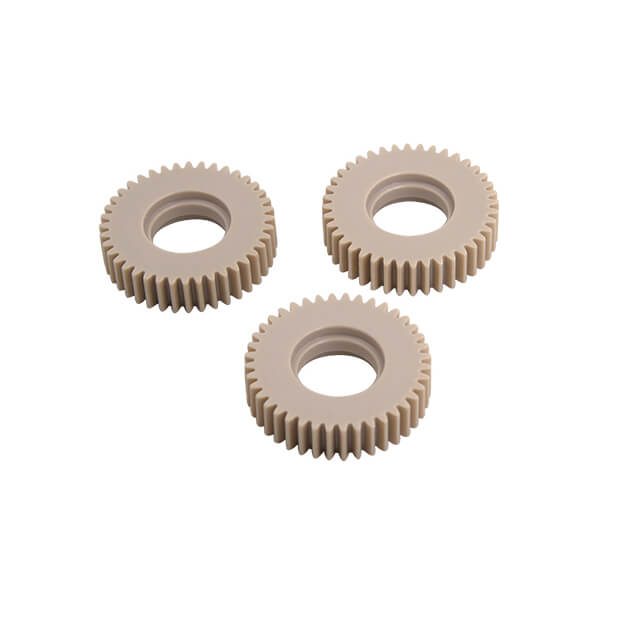

Oil-free Self-lubricating Gears, PEEK material

Home Mechanical Industry Oil-free Self-lubricating Gears, PEEK material

Oil-free Self-lubricating Gears, PEEK material

PEEK, as the engineering plastic with the best comprehensive performance, is also often used to manufacture gears.

• High temperature resistance

• Wear resistance

• Self-lubricating

• Low-noise

• Environmentally friendly and non-toxic

• Low hygroscopicity and hydrolysis resistance

• Corrosion Resistance

Mechanical Industry

Description

PolyEtherEtherKetone (PEEK)

Maintains wear resistance and mechanical strength up to 260℃ continuous use.

PEEK is the performance material of choice for aggressive environments such as high temperatures, wet processes, and heavy loads. It combines exceptional wear, chemical and moisture resistance with very high strength, dimensional stability and stiffness. PEEK can be continuously exposed to hot water or steam with no distortion, corrosion or galling.

Unreinforced PEEK is a general purpose material noted for its high elongation and toughness. Glass fiber-reinforced PEEK offers increased strength, stiffness and stability at high temperatures, while carbon fiber-reinforced PEEK gives designers the benefit of excellent compression strength and stiffness and reduced expansion rates. PEEK is easily machined to precise tolerances.

Description

  • Polyetheretherketone
  • Natural (beige), black

Properties

  • Superior wear resistance and dimensional stability to 260℃ continuous use
  • Excellent resistance to chemicals, steam and hydrolysis
  • Very low moisture absorption
  • Very high thermal stability (V-O UL 94 rating)
  • Superb flexural and torsional strength
  • Abrasion resistant
  • Good dielectric properties
  • Good resistance to radiation
  • Self-extinguishing

Applications

  • Sliding and wear parts
  • Food contact parts
  • Gears
  • Valve seats
  • Pump wear parts
  • Structural parts
  • Appliance parts
  • Bushings, bearings, seals and rings
  • Plug connectors
  • Wafer carriers

Industries

  • Chemical technology
  • Mechanical engineering
  • Energy industry
  • Electronics
  • Food technology
  • Oil and gas industry
  • Aircraft and aerospace technology
  • Automotive industry
  • Semiconductor technology
  • Vacuum technology



PEEK TECHNICAL DATA SHEET



Item Norm Unit Value
Physical Properties
Color – – Natural or Black
Density ISO 1183-1 g/cm3 1.3±0.01
Water Abs. (25℃.24Hrs) ISO 62 % 0.5
Mould shrinking percentage 3mm,170℃, Flow direction % 1.2
Perpendicular to flow direction 1.5
Thermal Properties
Melting point ISO 11357 ℃ 343
Distortion temperature ISO 75-1/-2 ℃ 163
Continuous using temperature UL 74685 ℃ 260
Glass transition temperature ISO 11357 ℃ 143
Machanical Properties
Tensile strength(23℃) ISO527-2/1B/50 Mpa 100
Tensile elongation(23℃) ISO527-2/1B/50 % 34
Bending strength(23℃) ISO 178 Mpa 163
Compressive strength(23℃) ISO 604 Mpa 118
Lzod impact strength           ( no gap) ISO 180/U KJm-2 No crack
Rockwell hardness ISO 2039-2 – 99
Friction coefficient – μ 0.30-0.38
Electrical Properties
Dielectric strength IEC 248 KV/mm 1.8
Dielectric constant IEC 250 – 3.2
Surface resistivity – Ω 1015
Miscellaneous Data
Flammable level UL 94 V-0@mm 1.5
